Product Specification
|
Model Number |
FRW060 |
FRW100 | FRW150 |
|

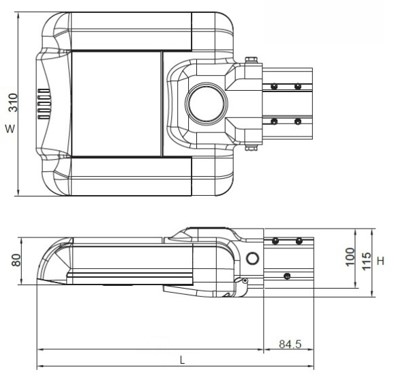

Size (LxWxH) (mm) |
447 x 310 x 115 mm |
487 x 310 x 115 mm |
662 x 310 x 115 mm |
|
Weight (kg) |
5.1 kg |
6.2 kg |
7.6 kg |
|
Power (W) |
60W |
100W |
150W |
|
Luminous Flux (lm) |
7500-8700 lm |
12500-14500 lm |
18750-21750 lm |
|
Luminous Efficacy |
125-145 lm/W |
||
|
Color Temperature (K) |
5,700K |
||
|
Color Rendering Index (Ra) |
83 Ra |
||
|
Beam Angle |
150° |
||
|
Protection |
IP66 |
||
|
Life time |
> 60,000 Hrs. |
||
Electrical Specification
|
|
min |
type |
max |
|
Input Voltage (Vac) |
100 |
220 |
277 |
|
Frequency (Hz) |
50 / 60 Hz |
||
|
Power Factor |
> 0.90 |
||
|
Operating Temperature |
-30 ̴ 50 °C |
||
